2.Product Key Technical Specifications
1. Platform Performance
Unloaded Weight: Approx. 22.5 kg (without battery)
Max Takeoff Weight: 91.5 kg (with spreading system)
Spraying System: 40 L tank
Spreading System: 40 L hopper / 40 kg
Spraying: ≤ 36 L (to prevent sloshing)
Spreading: ≤ 40 kg (or full hopper)
Propulsion System: Axial folding dual-rotor system
Recommended Battery: DJI ABP 501 Intelligent Flight Battery (25000 mAh)
2. Spraying System
Nozzles: Dual centrifugal nozzles
Spraying Width: Max. 11 m
Flow Rate Range: 0.48 - 4.8 L/min
Max Spraying Flow Rate: 24 L/min
Pump Type: Magnetic drive impeller pump
3. Spreading System
Spreader Disc Speed: 100 - 1000 rpm
Spreading Width: 4 - 7 m (material dependent)
Max Spreading Flow Rate: 40 kg/min
Feeding Mechanism: Auger screw + centrifugal disc
4. Sensing & Obstacle Avoidance
Effective Sensing Range: 1 - 50 m
Terrain Follow Height: 1.5 - 15 m (Radar), 3 - 15 m (Vision)
Max Terrain Follow Slope: ± 30°
5. Operational Efficiency
Area per Sortie (Spraying): ~20-30 acres (dependent on application rate)
Area per Sortie (Spreading): ~10-15 acres (dependent on application rate)
Max Hover Time: ~22 minutes (no payload, no operation)
Typical Operational Endurance: ~9 - 12 minutes (under full load)
3.Product Specifications
|
nozzles
|
2*centrifugal nozzles
|
Battery Capacity
|
52.2V
30000 mAh
|
|
Spraying System
|
40 L Tank
|
Spreading System
|
50 L
|
|
Max Spraying Flow Rate
|
35 L/min
|
Max Spreading Flow Rate
|
50 Kg/min
|
|
Remote Controller
|
DJI RC Plus, 7-inch high-lbrightness display
|
Operating Temperature
|
-20°C to 50°C
|
4.Product Advantages
1. Battery Capacity
The T40's 30000mAh high-capacity battery supports long-endurance operations, enabling fewer battery swaps and greater coverage per sortie for large-scale farms.
2. Generator Charging Time
With a compatible DJI generator, the battery can be rapidly charged in the field, achieving a full charge in approximately 9-10 minutes for minimal operational downtime.
3. Charger Charging Time
The high-power charging station can fully charge a T40 battery in about 9-10minutes, allowing for quick turnaround and continuous, high-intensity flight operations.
4. Spreading/Spraying Speed
It achieves a max spraying flow rate of 35L/min and a spreading rate of 50kg/min, enabling exceptionally fast and efficient coverage of large field areas.
5. Remote Control Intelligence
The DJI RC Plus features a bright, intuitive interface for automated planning and AI assistance, making complex operations simple and accessible for all skill levels.

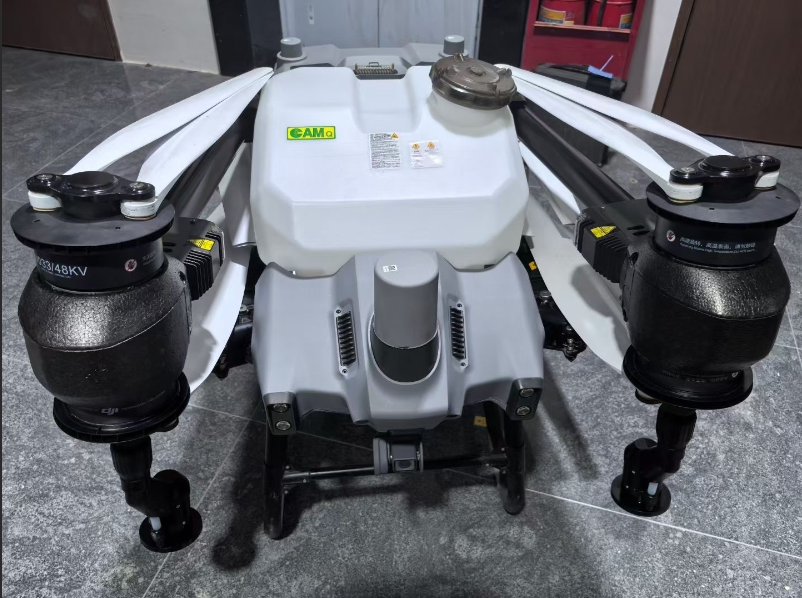

5.Product Detail Display
